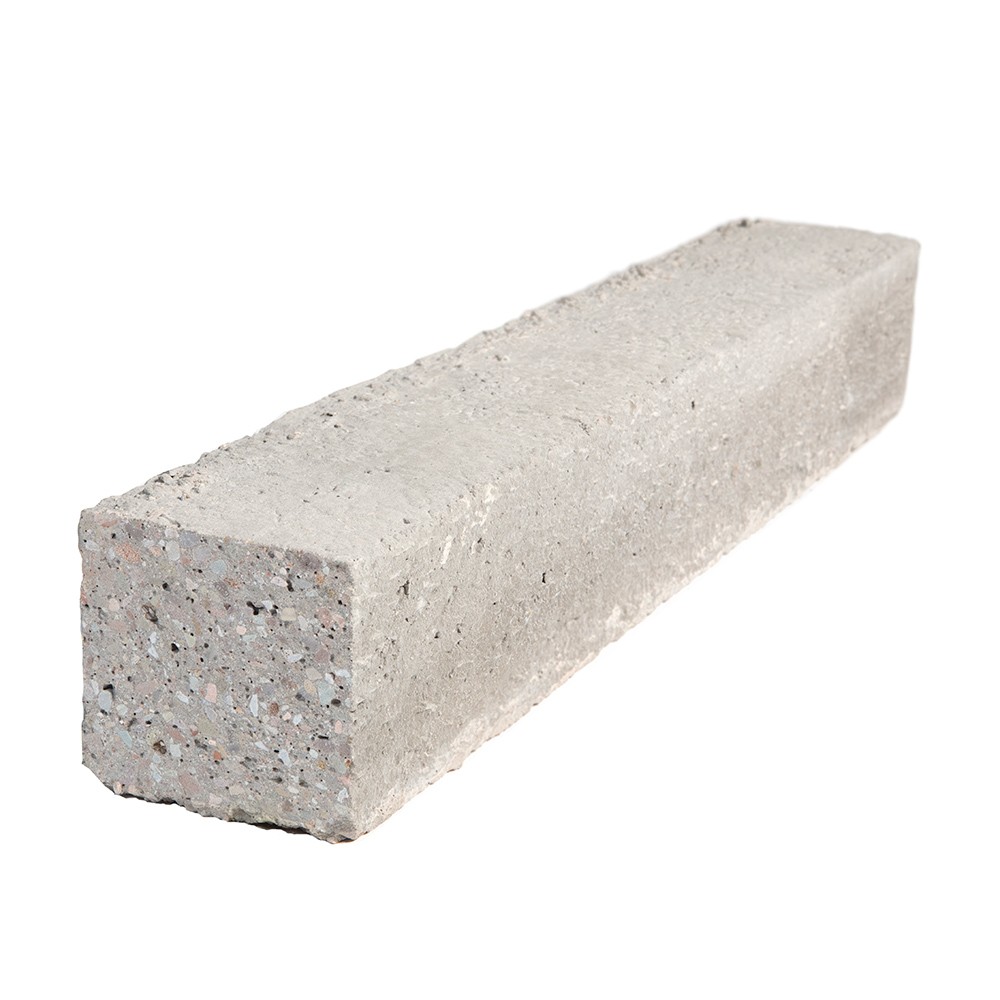

CONCRETE LINTEL 145 X 145 X 900MM TYPE F STANDARD FACE FR30

TYPE C(100X145mm) TYPE D(145X100mm) TYPE E(100X100mm) TYPE F(145X145mm) TYPE K9 (100X215mm) TYPE U2 (100X145mm) TYPE U2 (145X100mm) TYPE G8 (140x215mm)

These lintels are designed to take direct imposed loads.

Rafters, wall plates and floor joists may be accommodated
as directly imposed loads – see tables for loadbearing capacities.
BEARING: Minimum of 150mm each side or as directed by the
structural engineer.
PROPPING: Propping is not required with this type of lintel.
BRICKWORK: Non-composite lintels do not require brickwork bonded
to them. Point loads from girders, trusses, steel beams ect. require to be
referred to our Customer Advisory Service.
POSITIONING: Lintels must be placed with wire in correct position.
Lintels are marked top.
